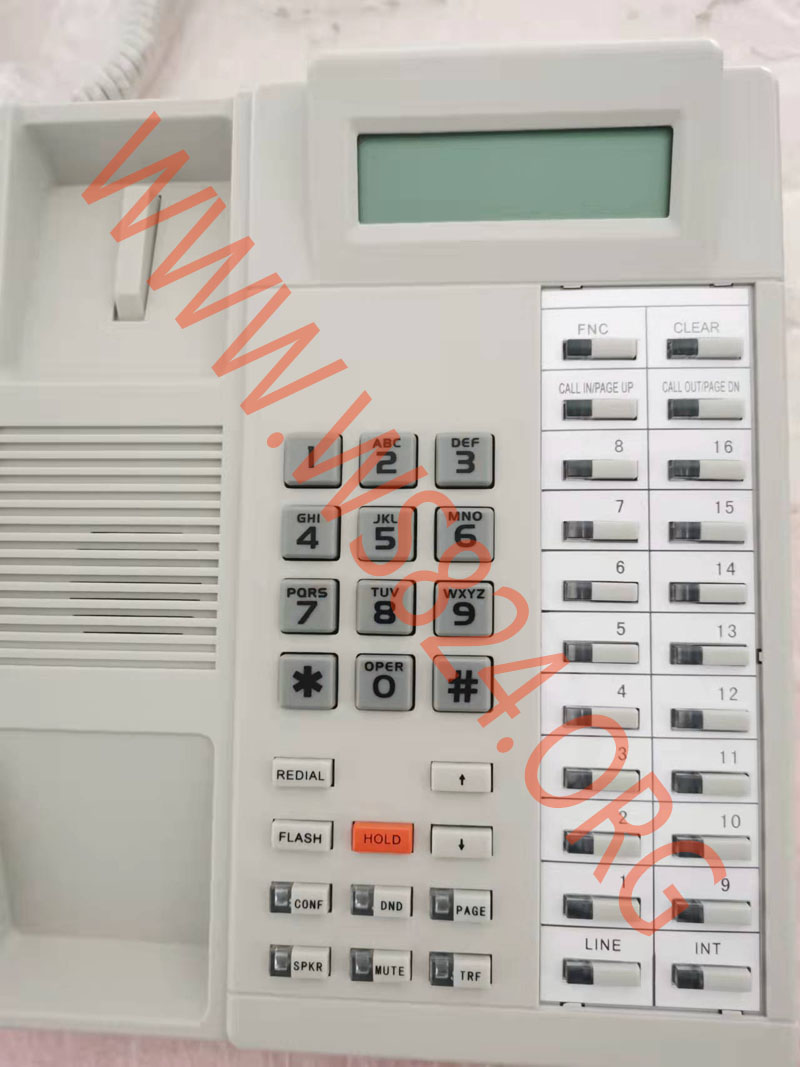

WS824-2C digital key phones produced by our company is a series of digital key phone, which inherit all the good points of the traditional key phone. According to the market needs, we make some bold innovations in the design and the functions not only in the technology and in the outlook which give a new and strong point for selling, include: circular key, exquisitely designed internal structure and outside appearance. It fully show the superiority, excellent quality and the super powerful function. The LCD display adopt STN module, 2-row Chinese and English display. WS824 digital key phones have the following features: display clearly, high definition, expanded clearly, conveniently to be used, English-Chinese 2-row display, and graceful outlook design. The group phone connected with WS key phone can realize its functions by pressing one key, such as: call transfer, telephone conference, page, and so on.
INSTALLATION
1. Key Phone installation
Key Phone to the hybrid port in the mainframe. If the line is too short for your environment, you can select a longer line by yourself. Be sure that the wire order in the line must be correct, otherwise the phone will not work.

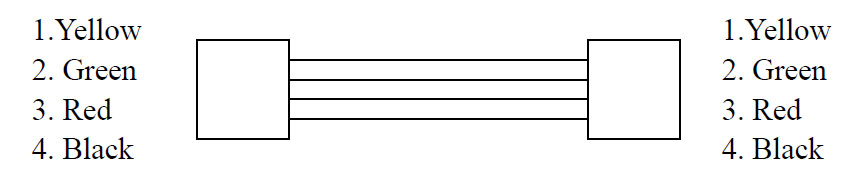

2. Wire order at the crystal head

TECHNICAL PARAMETER
1. Cable Length: less than 100 meters.( 2 pairs twisted wire,0.5 @,
resistor < 30Ω ).
2. Voltage : 32±12V DC / 50mA.
3. Environment Humidity: 10% ~ 95%.
4 Weight(KG):1kg
5. Dimension:(L*W*H):
225mm*195mm*100mm(WS824-2C)
219mm*178mm*110mm(WS824-520E)
235mm*206mm*79mm(WS824-3)
